Di-Log DLPK6780 CombiVolt 1 Voltage Indicator Proving Unit Kit

Di-Log CombiVolt 1 Voltage Indicator Proving Unit Kit

Di-Log DLPK6780

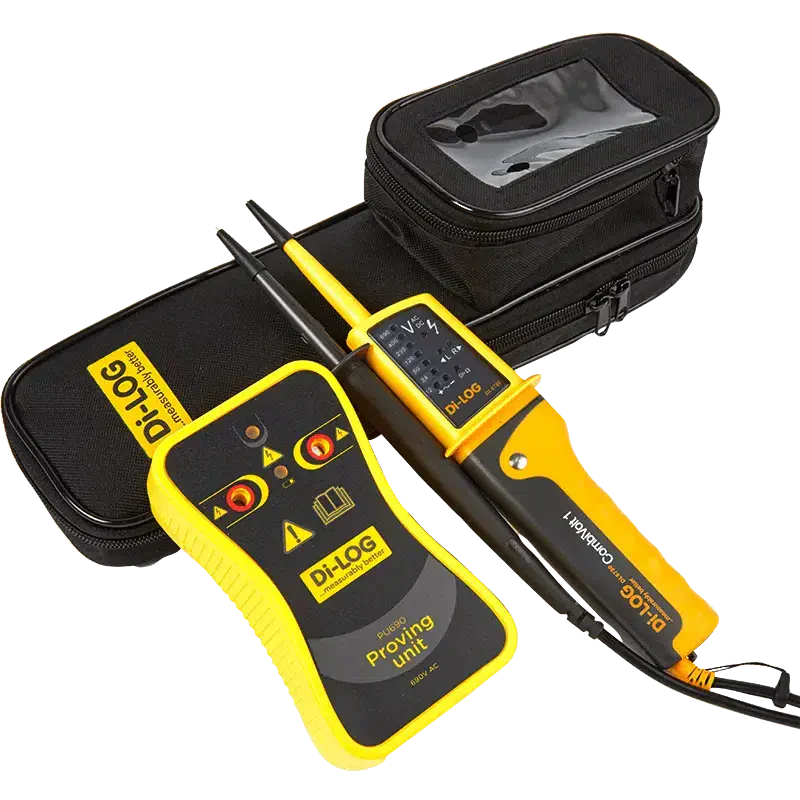

The NEW Di-LOG DLPK6780 CombiVolt 1 Voltage Indicator and Proving Unit kit is supplied packaged in our bespoke carry pouch fitted with a durable carrying strap and belt loop.

The DLPK6780 kits compact, lightweight and ergonomic design will encourage the user to carry it on their person ready to conduct the correct safe isolation procedure as outlined and in accordance with the “Electricity at Works Regulations 1989”.

DLPK6780 Contents:

• 1 x DL6780 CombiVolt 1 Voltage Indicator
• 1 x PU690 690V Proving Unit
• 1 x CCDLPK Carry Pouch

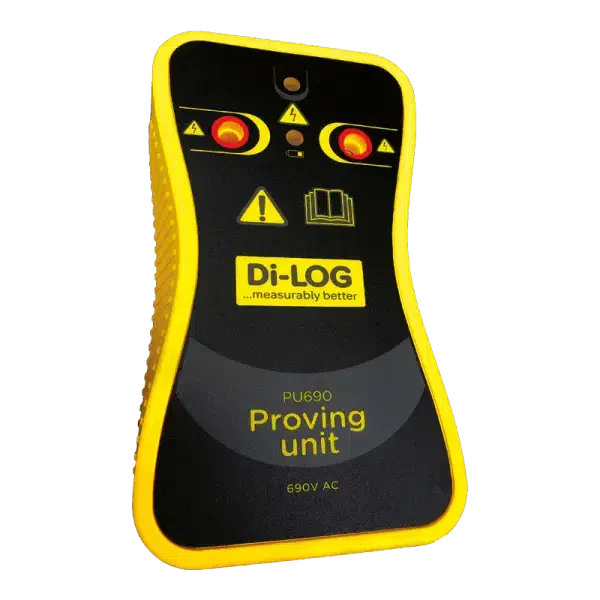

PU690 Key Features:

• 690V AC Output
• High/Low Impedance
• Low Battery Indicator
• CAT II 750 Safety Rating

DL6780 Key Features:

.

• 12-690V AC/DC Voltage
• Fully conformant to BS 61243-3:2014
• Audible Continuity
• Phase Rotation
• GS38 Compliant
• CAT IV 600V Safety Rating

Clear and simple voltage indication up to 690V by inserting the both probes directly into the input terminals of the PU690 for a maximum of 10 seconds.







AC/DC Voltage Measurement	12-690V
Battery Type	6 x 1.5V (LR6) AA / 2 x 1.5V (LR03)
Colour	Yellow/Black
Display Type	LED
Product Range	Voltage Indicator / Proving Unit
Indication	LED / Audible
Guarantee	2 Years
