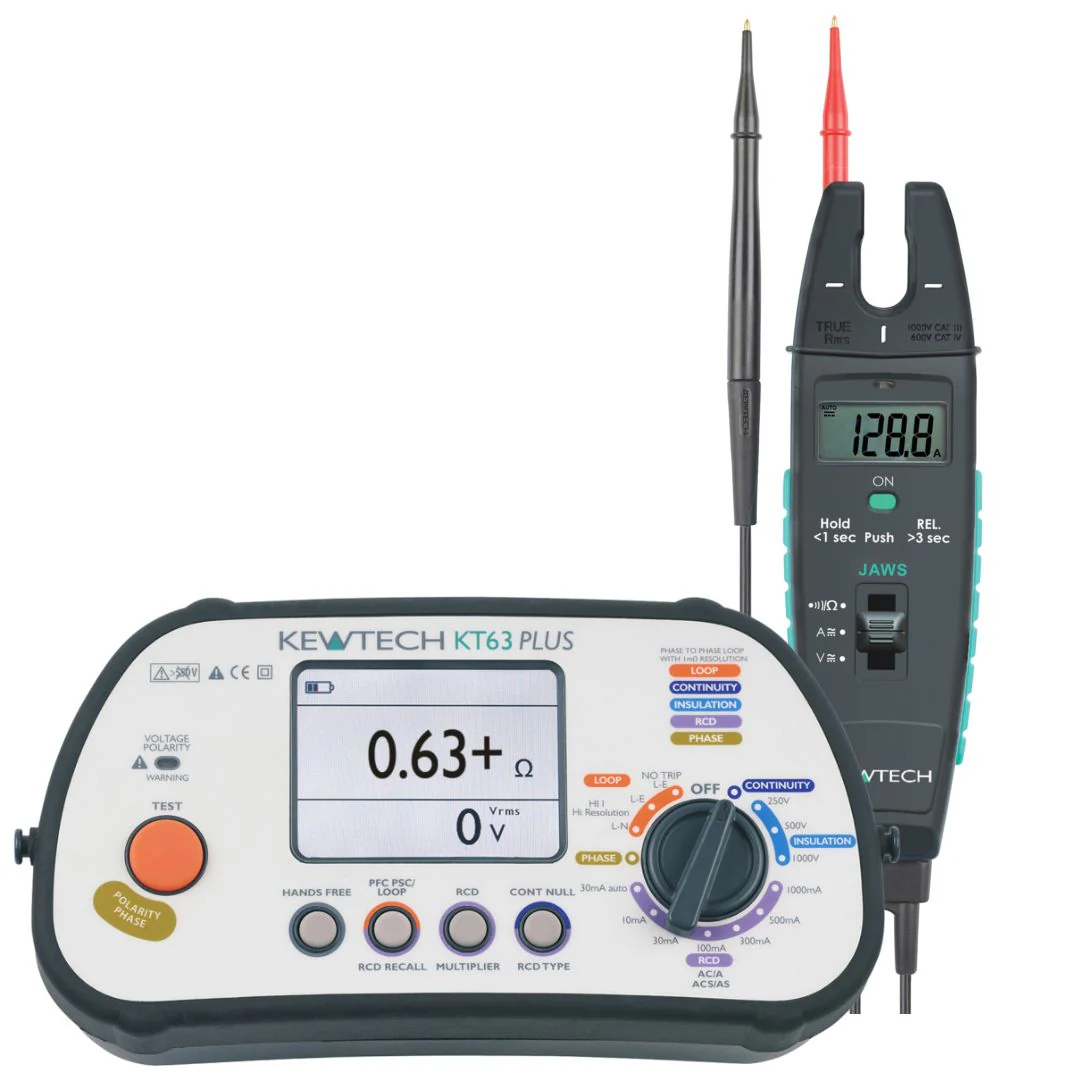

Kewtech KT63PLUS 6-in-1 Multifunction Tester & JAWS Current, Voltage & Resistance Clamp Meter
Kewtech KT63PLUS 6-in-1 Multifunction Tester & JAWS Current, Voltage & Resistance Clamp Meter
6-in-1 Multifunction Installation Tester with JAWS Current, Voltage & Resistance Clamp Meter
Kewtech KT63PLUS
- Continuity - switchable buzzer and auto null
- Insulation - 250, 500 & 1000V with auto discharge
- Loop ATT low current
- Loop high current 0.01 ohm and 0.001 ohm resolution
- Phase to phase loop test & 55V loop test capability suitable for 110V CTE systems
- PSC/PFC - clear indication of what is being tested and without the need to alter test probes
- RCD - Type AC, A, ACS, AS, auto & ramp
- Type AC RCDs - 10, 30, 100, 300, 500, 1000mA
- Type A RCDs - 10, 30, 100, 300mA
- Phase rotation
- Special DNO polarity test
- Memory for test lead resistance compensation
The Kewtech KT63PLUS 6-in-1 Multifunction Installation Tester provides professional-quality testing for installations. Its features include switchable buzzer continuity, insulation testing at 250, 500, and 1000V with auto discharge, loop ATT low current, and loop high current with 0.01 ohm and 0.001 ohm resolution. It has a phase to phase loop test and 55V loop test capability suitable for 110V CTE systems, and PSC and PFC tests with clear indication of what is being tested without needing to alter test probes. It also has AC, A, ACS, and AS RCD tests, with a range of 10, 30, 100, 300, 500, and 1000mA for type AC RCDs, and 10, 30, 100, and 300mA for type A RCDs. Further, it has a phase rotation test and a special DNO polarity test with memory for test lead resistance compensation.

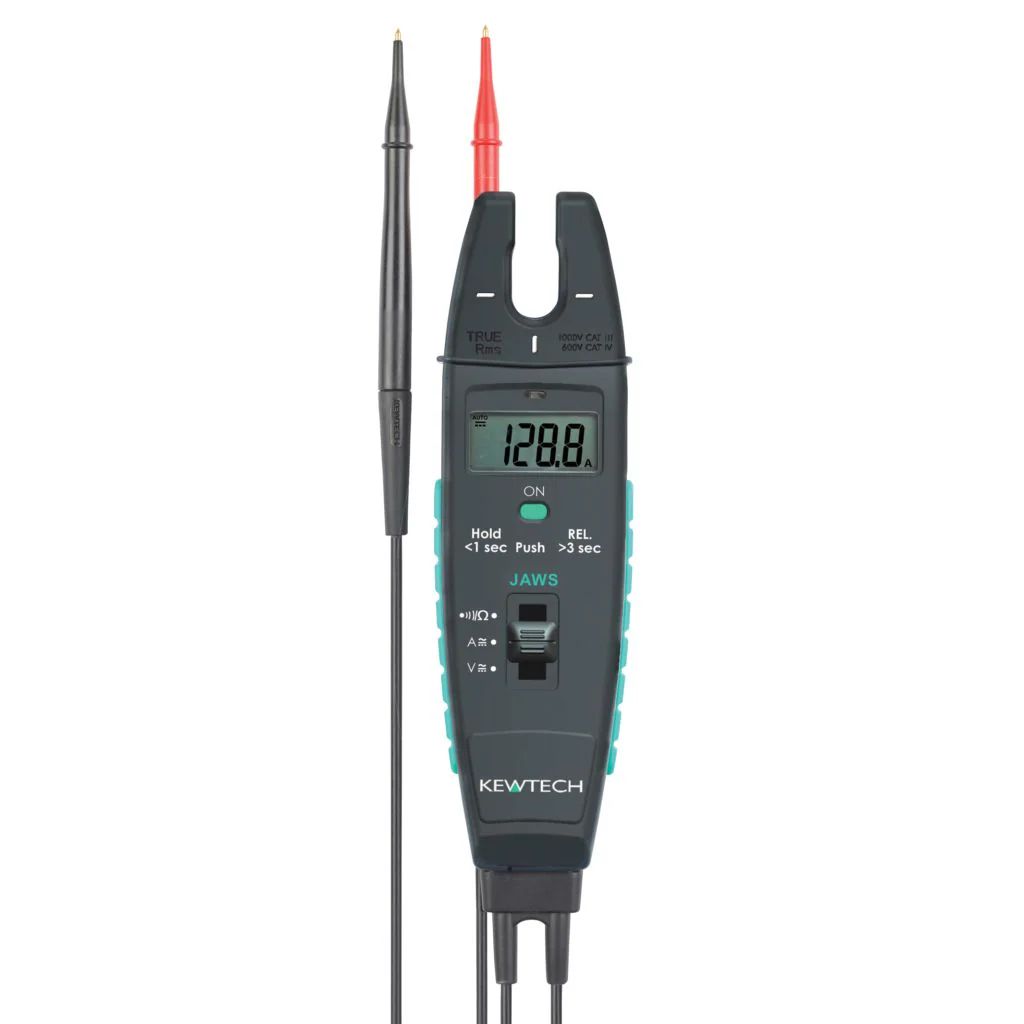

Kewtech Current, Voltage and Resistance Clamp Meter with TrueRMS Accuracy
Kewtech JAWS
Jaws is an open jaw current, voltage and resistance tester. Measuring AC/DC up to 200A, the user only needs to select the current function and the instrument will auto-detect whether an AC or DC load is being measured.
JAWS can also be used as a two-pole tester again with AC/DC auto detection measuring up to 750V and 1000V respectively. The AC current and voltage readings are TRMS taking care of distorted waveforms.
KEY BENEFITS
- Automatic AC or DC selection
- Two pole tester functionality with one probe retained in the housing
- Clear LCD display
- Easy to use even with electrical PPE equipment
- IEC 61010 CAT IV for current measurement
KEY FEATURES
- 200A AC TRMS
- 200A DC
- 750V AC TRMS
- 1000V DC
- Automatic AC or DC selection
- Clear LCD display
- Resistance measurement with buzzer
- Hold and relative function
- Automatic back light
The Kewtech JAWS Current, Voltage and Resistance Tester offers versatile open jaw measurements up to 200A AC/DC and two-pole testing with automatic AC/DC detection up to 750V and 1000V respectively. Accurate TRMS readings and a retained probe make it easy to use with electrical PPE and the clear LCD display ensures quick results.
.
Kewtech KT63PLUS
| Ac Voltage Measurement | 440V AC |
| Batteries Included | Yes |
| Battery Level Indicator | Yes |
| Battery Size | AA |
| Battery Type | Alkaline |
| Colour | Black/Grey |
| Continuity Check | Yes |
| Continuity Range | 0.01 Ω - 19.99 kΩ |
| Display Type | LCD |
| Guarantee | 1 Year |
| IP Rating | IP54 |
| Insulation Resistance Measuring Range | 0.01 MΩ - 1000 MΩ |
| Insulation Test Voltage | 250V / 500V / 1000V |
| Loop Impedance Range | Hi Current 0.000 Ω - 500.0 Ω / No Trip 0.00 Ω - 500.0 Ω |
| Number of Batteries | 8 |
| Packaging Types | Each |
| Rcd Settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| Rcd Test Range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA |
| Safety Range | CAT III 500V, CAT IV 300V |
| Standards | EN61010 |

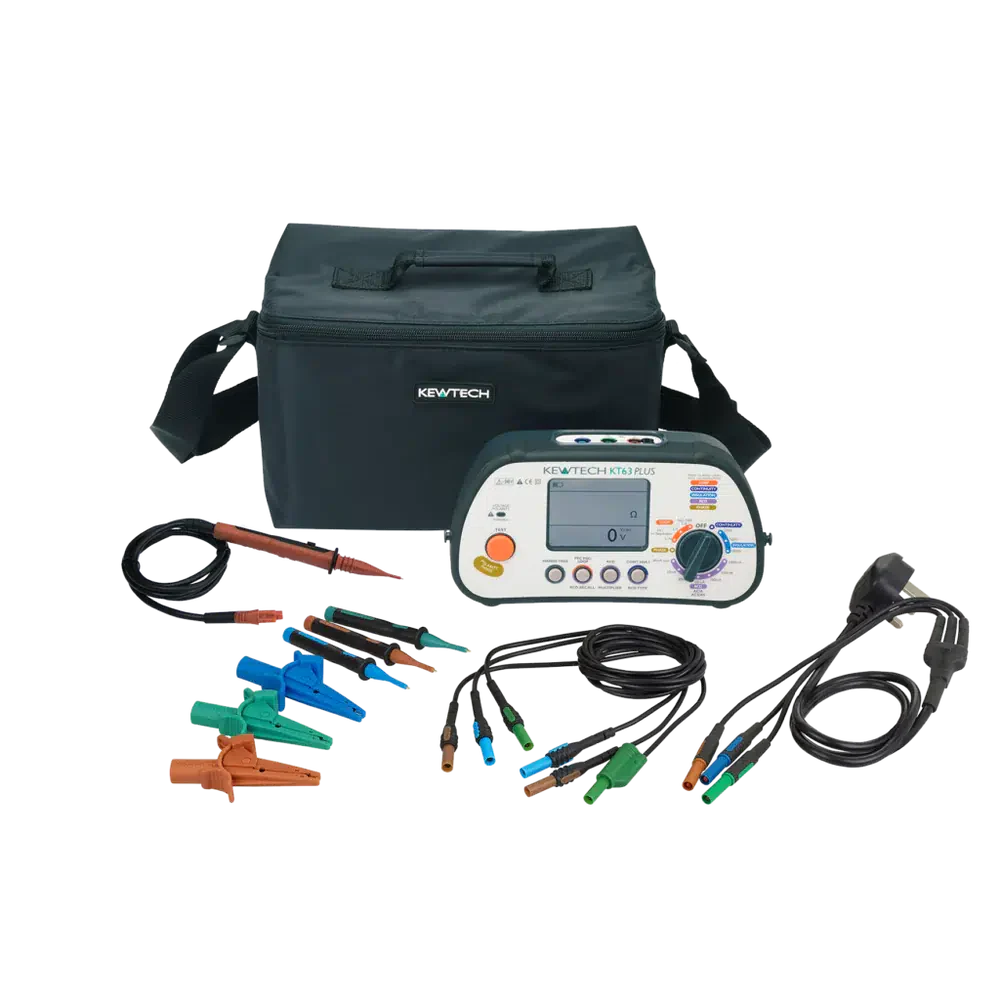

| Supplied With | ACC063 Distribution Board Test Lead Set, Mains Lead, Batteries, Instruction Manual, Soft Carry Case and Calibration Certificate |
Kewtech JAWS
| Brand |
Kewtech |
| AC Voltage | Up to 750V |
| DC Voltage |
Up to 1000V |
| AC Current | Up to 200A |
| Indication Type |
LCD Display |
| Product Type | Open Clamp Tester |
| Guarantee | 1 Year |
