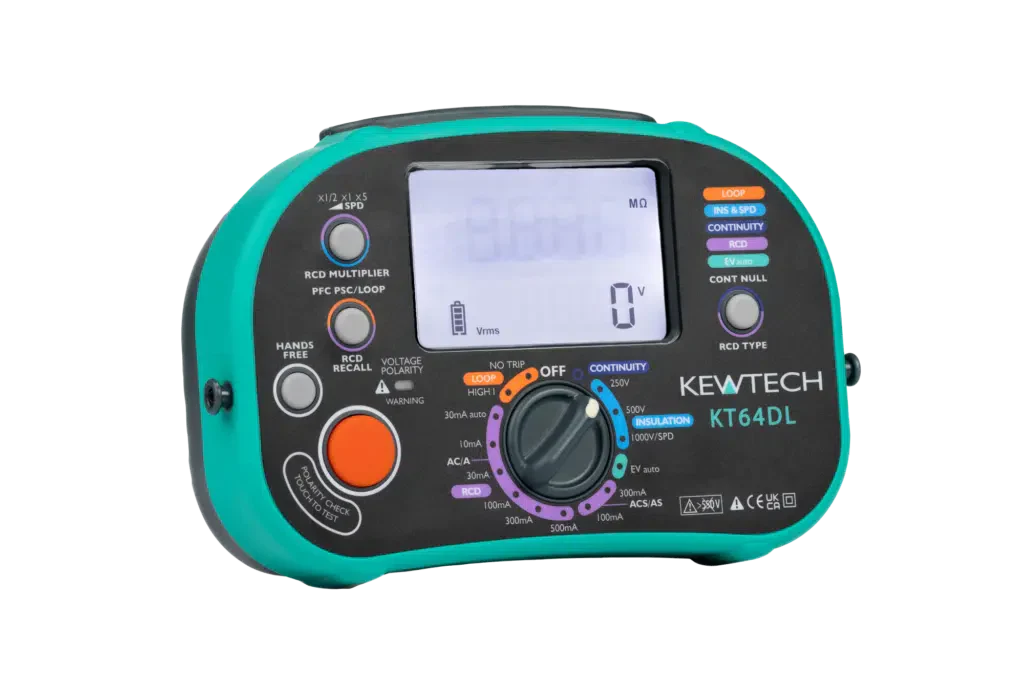

Kewtech KT64DL 6-in-1 Compact Multifunction Tester
6-in-1 Compact Multifunction Tester
Kewtech KT64DL
- Continuity - switchable buzzer and auto null
- Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
- Loop - ATT (low current), high current 0.01 ohm resolution
- Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
- PSC/PFC - clear indication of what is being tested and displayed with loop reading
- RCD - Type AC, A, ACS, AS, auto & ramp
- Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
- Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA

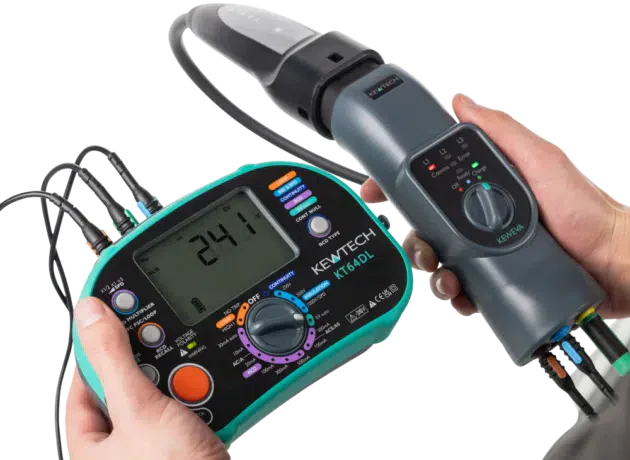

- 6mA DC test at 0 & 180 for EV charge point testing
- 30mA x 1 RCD test at 0 & 180
- RCD auto test mode for 30 mA RCDs
- RCD ramp test function
- SPD testing
- Gold plated probe tips for more consistent readings
- Test leads auto-null for continuity mode
- Polarity check
- Instant correct wiring status check

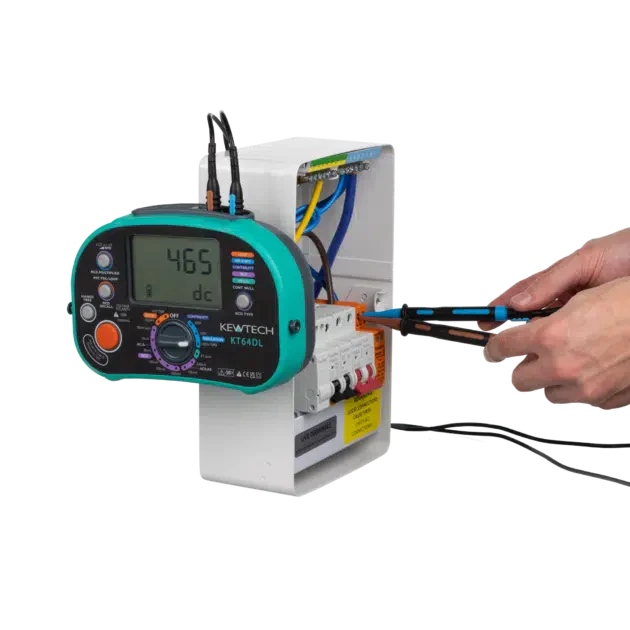

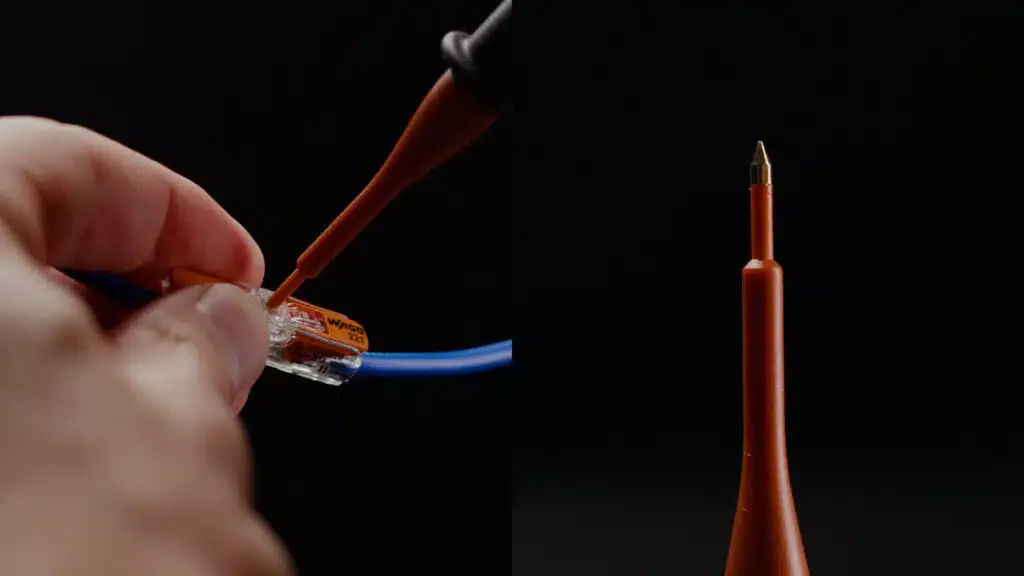

The Kewtech KT64DL 6-in-1 Multifunction Tester is the UK's most compact and lightweight option. With a robust loop testing circuit and auto RCD test, it ensures safe and efficient testing. The magnetic base makes hands-free testing possible, and the single rotary dial and large screen display make it easy to use. New slim probe tips allow for access to push fit connector blocks. Constant live voltage detection and continuous live monitoring protect against blown fuses and PCBs. Ideal for EV charge point testing and with an IP54 rating for added durability.
.
| Batteries Included | Yes |
| Battery Type | 4 x AA |
| Battery Level Indicator | Yes |
| Colour | Black/Green |
| Continuity Check | Yes |
| Continuity Range | 0.00 Ω - 29.99 kΩ. |
| Display Type | Auto-Backlit LCD |
| Guarantee | 1 Year |
| IP Rating | IP54 |
| Insulation Resistance Measuring Range | 0.1 MΩ - 1999 MΩ |
| Insulation Test Voltage | 250V / 500V / 1000V |
| Loop Impedance Range | Hi Current 0.01 Ω - 500.0 Ω / No Trip 0.01 Ω - 500.0 Ω |
| Product Range | Multifunction Testers |
| RCD Settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| RCD Test Range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA |
| RCD Trip Time | 5 ms - 1999ms |
| Safety Ratings |
Continuity and Insulation - 500V Cat III Look and RCD - 30V Cat IV |
| Standards | EN61010 |

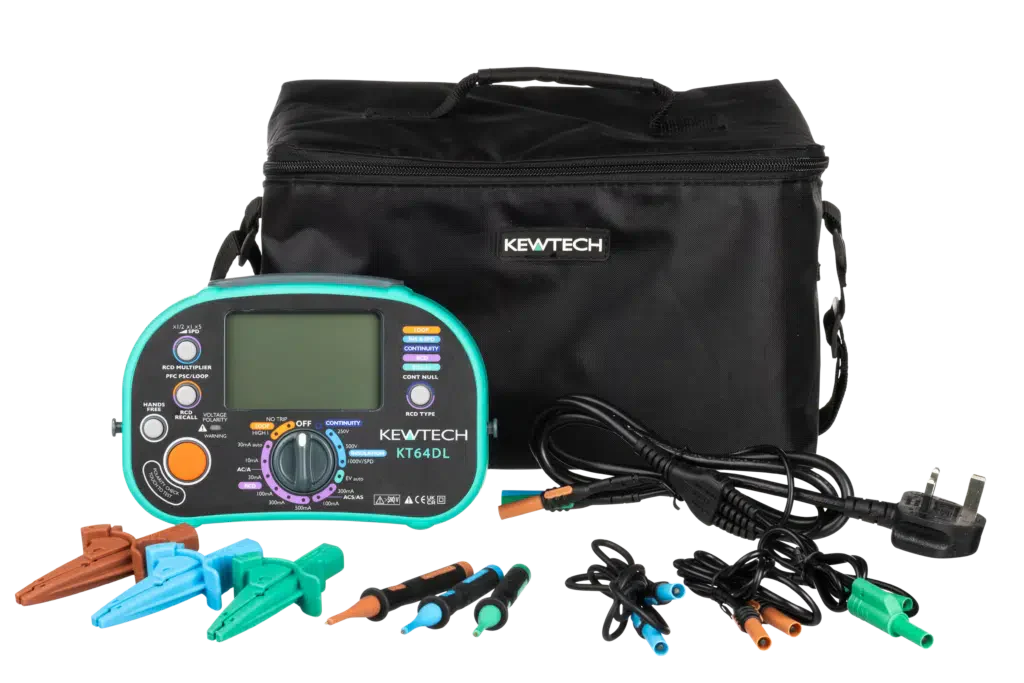

| Supplied With | ACC063 Distribution Board Test Lead Set, Kamp 12 Mains Lead, Batteries, Instruction Manual, Soft Carry Case and End of Line Calibration Certificate |
| Weight | 2.23kg |
Original: $924.73
-65%$924.73
$323.66More Images
Kewtech KT64DL 6-in-1 Compact Multifunction Tester
6-in-1 Compact Multifunction Tester
Kewtech KT64DL
- Continuity - switchable buzzer and auto null
- Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
- Loop - ATT (low current), high current 0.01 ohm resolution
- Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
- PSC/PFC - clear indication of what is being tested and displayed with loop reading
- RCD - Type AC, A, ACS, AS, auto & ramp
- Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
- Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA
- 6mA DC test at 0 & 180 for EV charge point testing
- 30mA x 1 RCD test at 0 & 180
- RCD auto test mode for 30 mA RCDs
- RCD ramp test function
- SPD testing
- Gold plated probe tips for more consistent readings
- Test leads auto-null for continuity mode
- Polarity check
- Instant correct wiring status check
The Kewtech KT64DL 6-in-1 Multifunction Tester is the UK's most compact and lightweight option. With a robust loop testing circuit and auto RCD test, it ensures safe and efficient testing. The magnetic base makes hands-free testing possible, and the single rotary dial and large screen display make it easy to use. New slim probe tips allow for access to push fit connector blocks. Constant live voltage detection and continuous live monitoring protect against blown fuses and PCBs. Ideal for EV charge point testing and with an IP54 rating for added durability.
.
| Batteries Included | Yes |
| Battery Type | 4 x AA |
| Battery Level Indicator | Yes |
| Colour | Black/Green |
| Continuity Check | Yes |
| Continuity Range | 0.00 Ω - 29.99 kΩ. |
| Display Type | Auto-Backlit LCD |
| Guarantee | 1 Year |
| IP Rating | IP54 |
| Insulation Resistance Measuring Range | 0.1 MΩ - 1999 MΩ |
| Insulation Test Voltage | 250V / 500V / 1000V |
| Loop Impedance Range | Hi Current 0.01 Ω - 500.0 Ω / No Trip 0.01 Ω - 500.0 Ω |
| Product Range | Multifunction Testers |
| RCD Settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| RCD Test Range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA |
| RCD Trip Time | 5 ms - 1999ms |
| Safety Ratings |
Continuity and Insulation - 500V Cat III Look and RCD - 30V Cat IV |
| Standards | EN61010 |
| Supplied With | ACC063 Distribution Board Test Lead Set, Kamp 12 Mains Lead, Batteries, Instruction Manual, Soft Carry Case and End of Line Calibration Certificate |
| Weight | 2.23kg |
