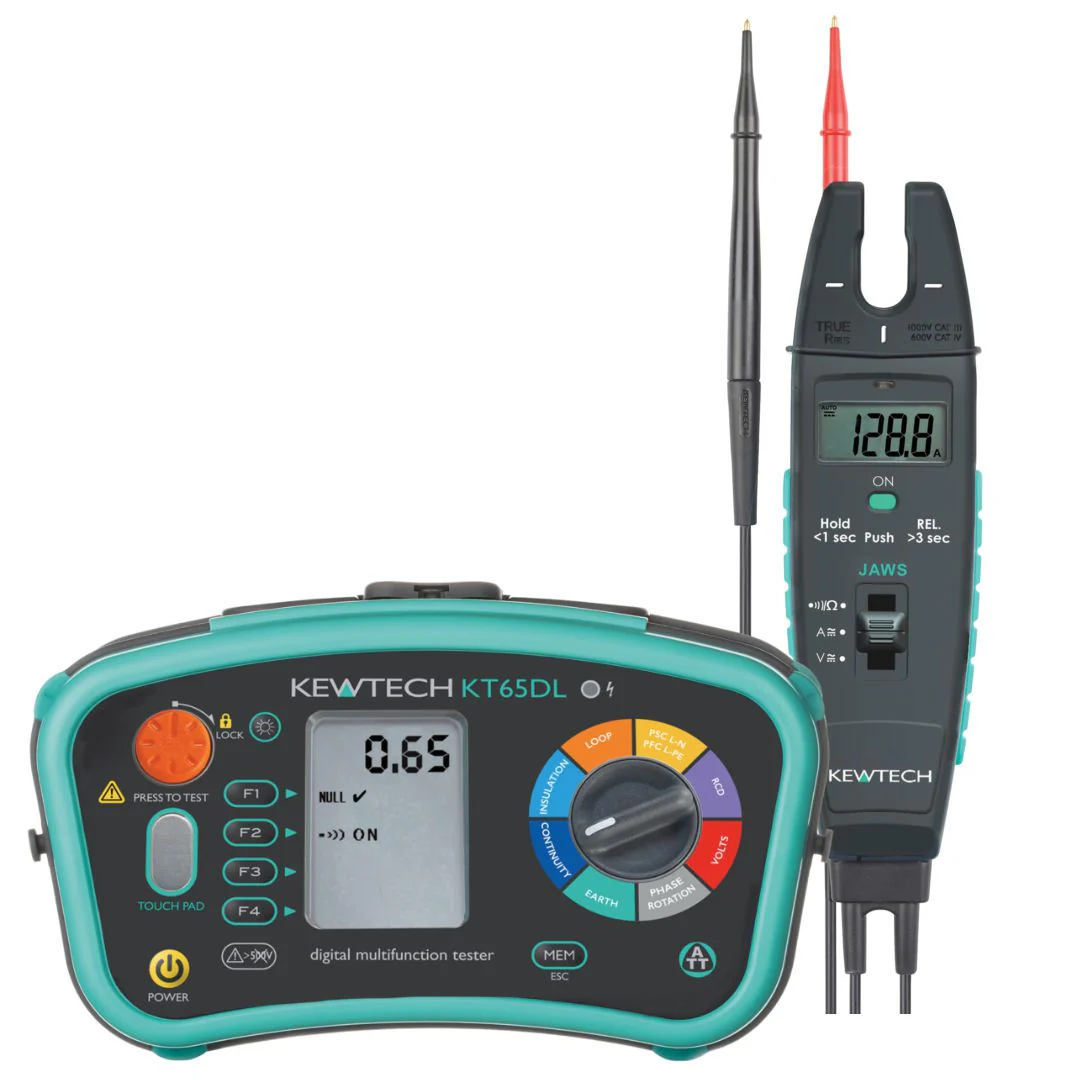

Kewtech KT65DL 8-in-1 Multifunction Tester & JAWS Current, Voltage & Resistance Clamp Meter
Kewtech KT65DL 8-in-1 Multifunction Tester & JAWS Current, Voltage & Resistance Clamp Meter
8-in-1 Multifunction Installation Tester with JAWS Current, Voltage & Resistance Clamp Meter
Kewtech KT65DL
- Easy to use and straight forward interface with single rotary dial and large screen display
- Constant live voltage detection protects when dead testing
- No Bangs – continuous live monitoring means no blown fuses or PCBs
- Magnetic base for hands free attachment to metal cabinets
- Electronic 'hands free' lock down test button
- IP54 even when the leads are not plugged in
- End of line calibration certificate

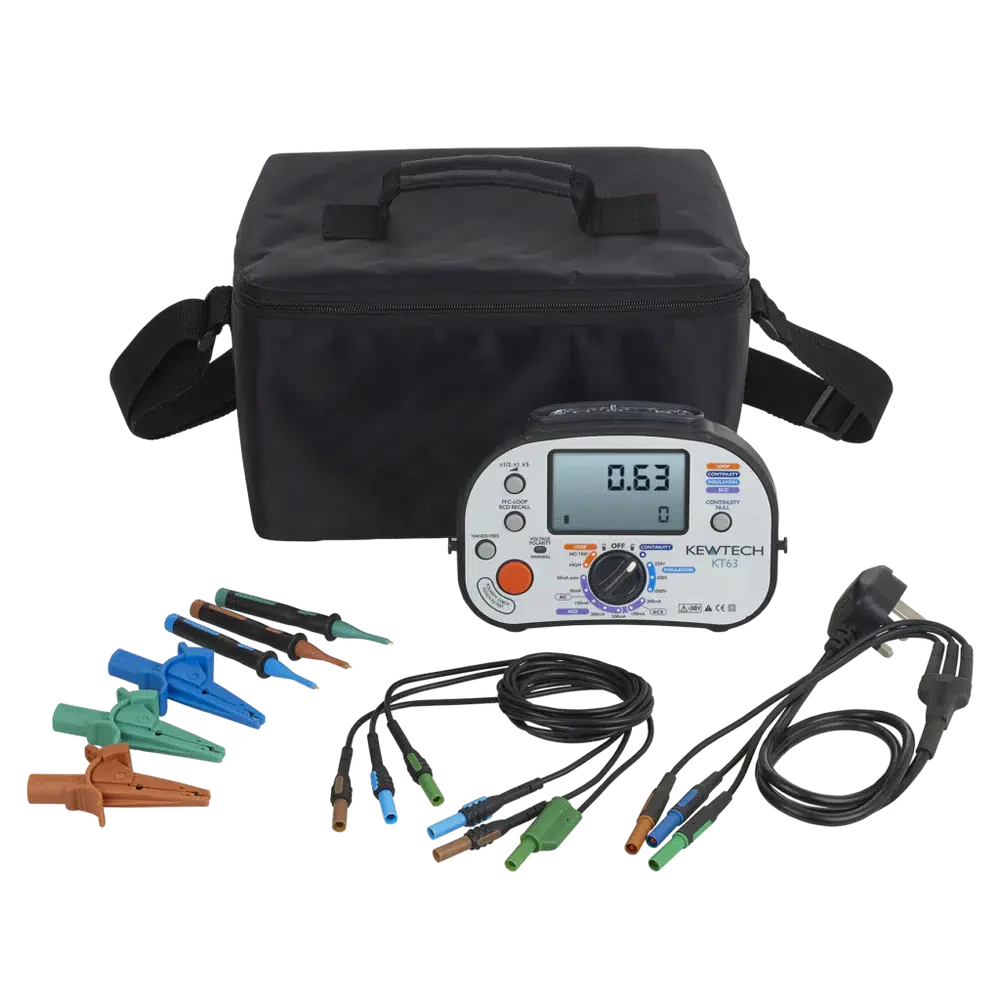

- Comes complete with soft carry case, mains lead, distribution board leads and padded neck strap
- Continuity - switchable buzzer and auto null
- Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
- Loop - ATT (low current), high current 0.01 ohm resolution
- Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
- PSC/PFC - clear indication of what is being tested and displayed with loop reading
- RCD - Type AC, A, ACS, AS, auto & ramp
- Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
- Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA
- RCD auto test mode for 30 mA RCDs
- RCD ramp test function
- Test leads auto-null for continuity mode
- Polarity check
- Instant correct wiring status check
The Kewtech KT65DL 8-in-1 Multifunction Installation Tester is an easy-to-use and straightforward tool with a single rotary dial and large screen display. It has Constant Live Voltage Detection to protect when dead testing, Electronic 'hands free' lock down test button, IP54 rating even when the leads are not plugged in, and a magnetic base for hands free attachment to metal cabinets. It also features Anti Trip Technology loop for full no trip Loop testing of RCDs with low s. A complete package with soft carry case, mains lead, distribution board leads, and padded neck strap. Get precision testing accuracy with an end of line calibration certificate.

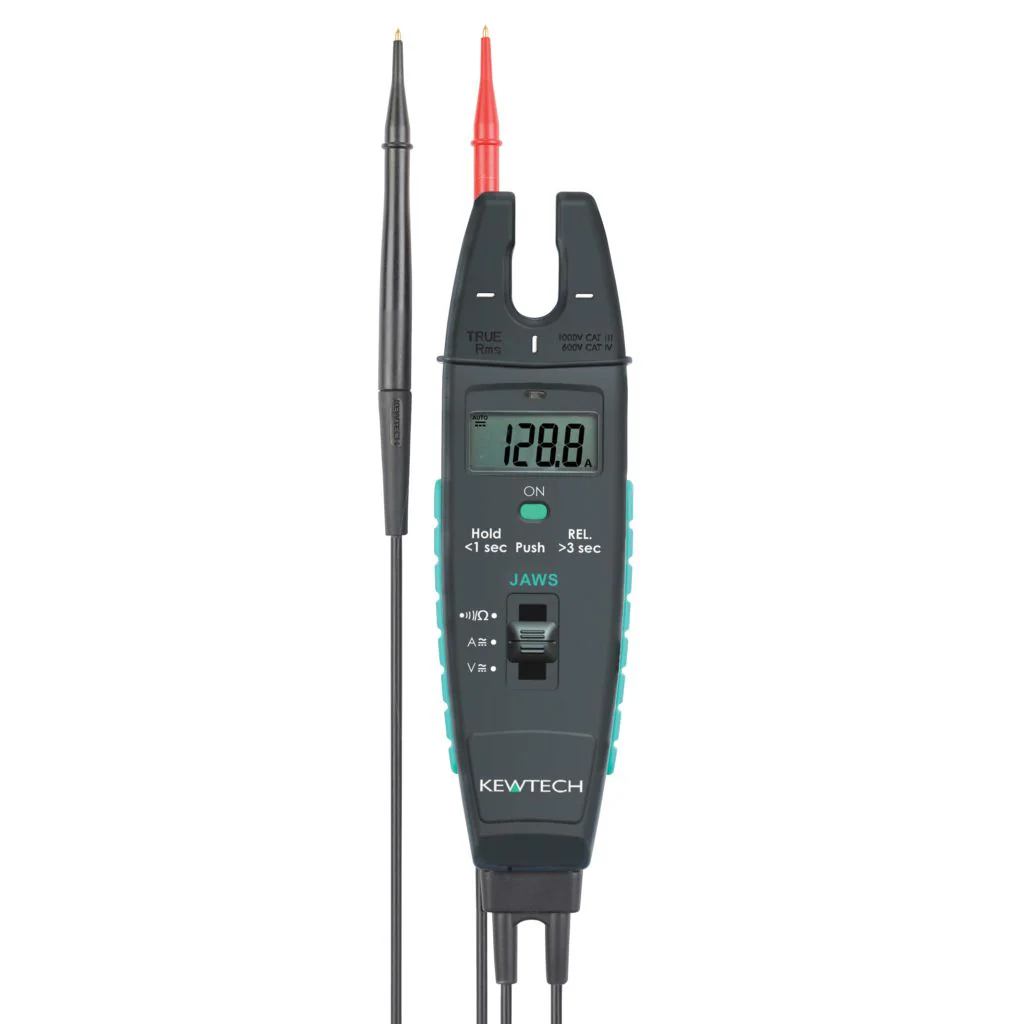

Kewtech Current, Voltage and Resistance Clamp Meter with TrueRMS Accuracy
Kewtech JAWS
Jaws is an open jaw current, voltage and resistance tester. Measuring AC/DC up to 200A, the user only needs to select the current function and the instrument will auto-detect whether an AC or DC load is being measured.
JAWS can also be used as a two-pole tester again with AC/DC auto detection measuring up to 750V and 1000V respectively. The AC current and voltage readings are TRMS taking care of distorted waveforms.
KEY BENEFITS
- Automatic AC or DC selection
- Two pole tester functionality with one probe retained in the housing
- Clear LCD display
- Easy to use even with electrical PPE equipment
- IEC 61010 CAT IV for current measurement
KEY FEATURES
- 200A AC TRMS
- 200A DC
- 750V AC TRMS
- 1000V DC
- Automatic AC or DC selection
- Clear LCD display
- Resistance measurement with buzzer
- Hold and relative function
- Automatic back light
The Kewtech JAWS Current, Voltage and Resistance Tester offers versatile open jaw measurements up to 200A AC/DC and two-pole testing with automatic AC/DC detection up to 750V and 1000V respectively. Accurate TRMS readings and a retained probe make it easy to use with electrical PPE and the clear LCD display ensures quick results.
.
Kewtech KT65DL
| 3 Phase Rotation | Yes |
| Ac Voltage Measurement | 500V AC |
| Batteries Included | Yes |
| Battery Level Indicator | Yes |
| Battery Size | AA |
| Battery Type | Alkaline |
| Colour | Black/Grey |
| Continuity Check | Yes |
| Continuity Range | 0.01 Ω - 2000 Ω |
| Display Type | LCD |
| Earth Electrode Test | Yes |
| Guarantee | 1 Year |
| IP Rating | IP54 |
| Insulation Resistance Measuring Range | 0.1 MΩ - 2000 MΩ |
| Insulation Test Voltage | 250V / 500V / 1000V |
| Loop Impedance Range | 0.01 Ω - 2000 Ω |
| Number of Batteries | 8 |
| Packaging Types | Each |
| Rcd Settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| Rcd Test Range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA |
| Safety Range | CAT III 500V, CAT IV 300V |
| Standards | EN61010 |
| Supplied With | ACC064SP G7 Test Lead with Remote Test Button, ACC065 G7 Test Lead Set, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Test Lead Pouch and Soft Carry Case |
Kewtech JAWS
| Brand |
Kewtech |
| AC Voltage | Up to 750V |
| DC Voltage |
Up to 1000V |
| AC Current | Up to 200A |
| Indication Type |
LCD Display |
| Product Type | Open Clamp Tester |
| Guarantee | 1 Year |
