Kewtech KT66DL Multifunction Tester & JAWS Current, Voltage & Resistance Clamp Meter
KT66DL Multifunction Installation Tester with JAWS Current, Voltage & Resistance Clamp Meter
Kewtech KT66DL
- Continuity tests at 200mA or 15mA with selectable buzzer
- Insulation resistance tests 100, 250, 500 and 1000V with auto discharge voltage
- Earth resistance test 2 and 3 wires options
- High current and anti-trip technology loop test [with 2 and 3 wire] for no trip loop L-PE testing on all RCDs
- 55V low and high current loop test of 110V CTE circuits
- RCD test for type AC, A, F, B [general or selective], EV and variable RCDs, single, auto, ramp and contact voltage options
- Phase rotation test
- TRMS voltage measurements from 2 - 600V at mains frequency
- SPD test, for SPD that use varistors
- PAT function for insulation and protective conductor resistance tests
- Advanced memory assigns type of test, circuit number and DB to test results
The Kewtech KT66DL Multifunction Installation Tester with EVSE Facility is a highly advanced device designed for professional electricians and contractors. This innovative device is designed to perform a range of testing functions, including insulation, continuity, and loop impedance testing, making it an essential tool for anyone working with electrical systems.
The Kewtech KT66DL Multifunction Installation Tester with EVSE Facility also features a unique EVSE (Electric Vehicle Supply Equipment) testing facility, which allows electricians and contractors to test EVSE charging points for safety and compliance with industry standards. This makes it the ideal tool for anyone working with electric vehicles, ensuring that they are operating safely and efficiently.
With its advanced measurement capabilities, the Kewtech KT66DL Multifunction Installation Tester with EVSE Facility is built to withstand the demands of any job site. Its rugged design provides reliable performance in even the toughest conditions, while its easy-to-use interface and large LCD display make it simple to take precise measurements.
The Kewtech KT66DL Multifunction Installation Tester with EVSE Facility is an essential addition to any electrician's toolkit. By using this innovative device, you can quickly and accurately test your electrical installations and ensure that they are safe and compliant with industry standards. Don't wait to get started – order your Kewtech KT66DL Multifunction Installation Tester with EVSE Facility today and experience the peace of mind that comes with knowing your electrical systems are in top condition.
Kewtech Current, Voltage and Resistance Clamp Meter with TrueRMS Accuracy

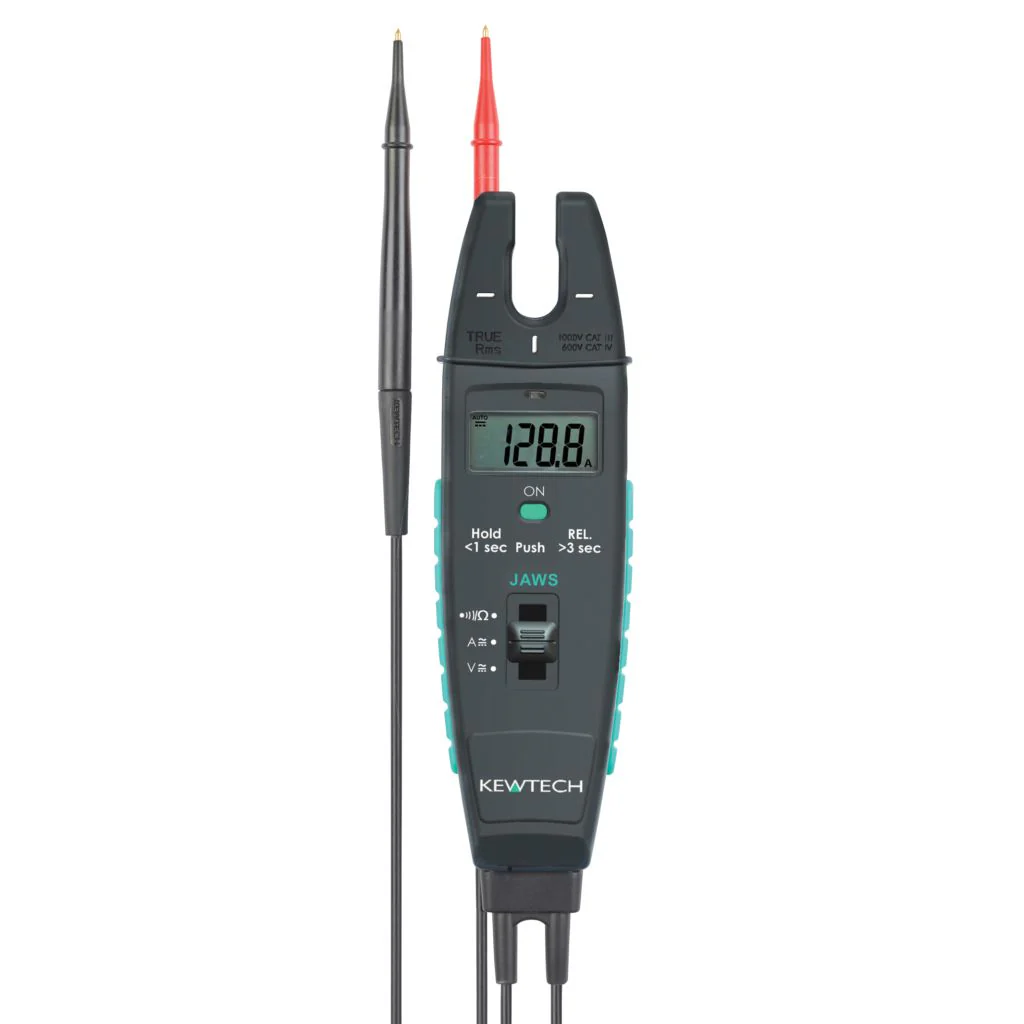

Kewtech JAWS
Jaws is an open jaw current, voltage and resistance tester. Measuring AC/DC up to 200A, the user only needs to select the current function and the instrument will auto-detect whether an AC or DC load is being measured.
JAWS can also be used as a two-pole tester again with AC/DC auto detection measuring up to 750V and 1000V respectively. The AC current and voltage readings are TRMS taking care of distorted waveforms.
KEY BENEFITS
- Automatic AC or DC selection
- Two pole tester functionality with one probe retained in the housing
- Clear LCD display
- Easy to use even with electrical PPE equipment
- IEC 61010 CAT IV for current measurement
KEY FEATURES
- 200A AC TRMS
- 200A DC
- 750V AC TRMS
- 1000V DC
- Automatic AC or DC selection
- Clear LCD display
- Resistance measurement with buzzer
- Hold and relative function
- Automatic back light
The Kewtech JAWS Current, Voltage and Resistance Tester offers versatile open jaw measurements up to 200A AC/DC and two-pole testing with automatic AC/DC detection up to 750V and 1000V respectively. Accurate TRMS readings and a retained probe make it easy to use with electrical PPE and the clear LCD display ensures quick results.
.
| 3 Phase Rotation | Yes |
| Ac Voltage Measurement | 600V AC |
| Batteries Included | Yes |
| Battery Level Indicator | Yes |
| Battery Size | AA |
| Battery Type | Alkaline |
| Continuity Check | Yes |
| Continuity Range | 0.01 Ω - 2000 Ω |
| Depth | 136mm |
| Dimensions | (H)114 mm x (W)235 mm x (D)136 mm |
| Guarantee | 1 Year |
| Height | 114mm |
| Insulation Resistance Measuring Range | 0.1 MΩ - 2000 MΩ |
| Insulation Test Voltage | 100V / 250V / 500V / 1000V |
| Loop Impedance Range | 0.01 Ω - 2000 Ω |
| Number of Batteries | 8 |
| Packaging Types | Each |
| Product Range | Multifunction Testers |
| Rcd Settings | ½ / x1 / x5 @ 0° and 180° / Type AC / A / F / B / Auto and Ramp Tests |
| Rcd Test Range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA |
| Resistance Measurement | 0.01 Ω - 2000 Ω |
| Safety Range | CAT III 600V CAT IV 300V |
| Standards | EC61557-1,2,3,4,5,6,7,10 |
| Supplied With | ACC064SP G7 Test Probe with Remote Test Button, ACC065 G7 Test Lead Set, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Software, USB Lead, Test Lead Pouch and Soft Carry Case |
| Width | 235mm |
Kewtech JAWS
| Guarantee | 1 Year |
| Packaging Types | Each |
| Product Range | EV Tester |
| Safety Range | CAT II 300V |
| Supplied With | Carry Case |
