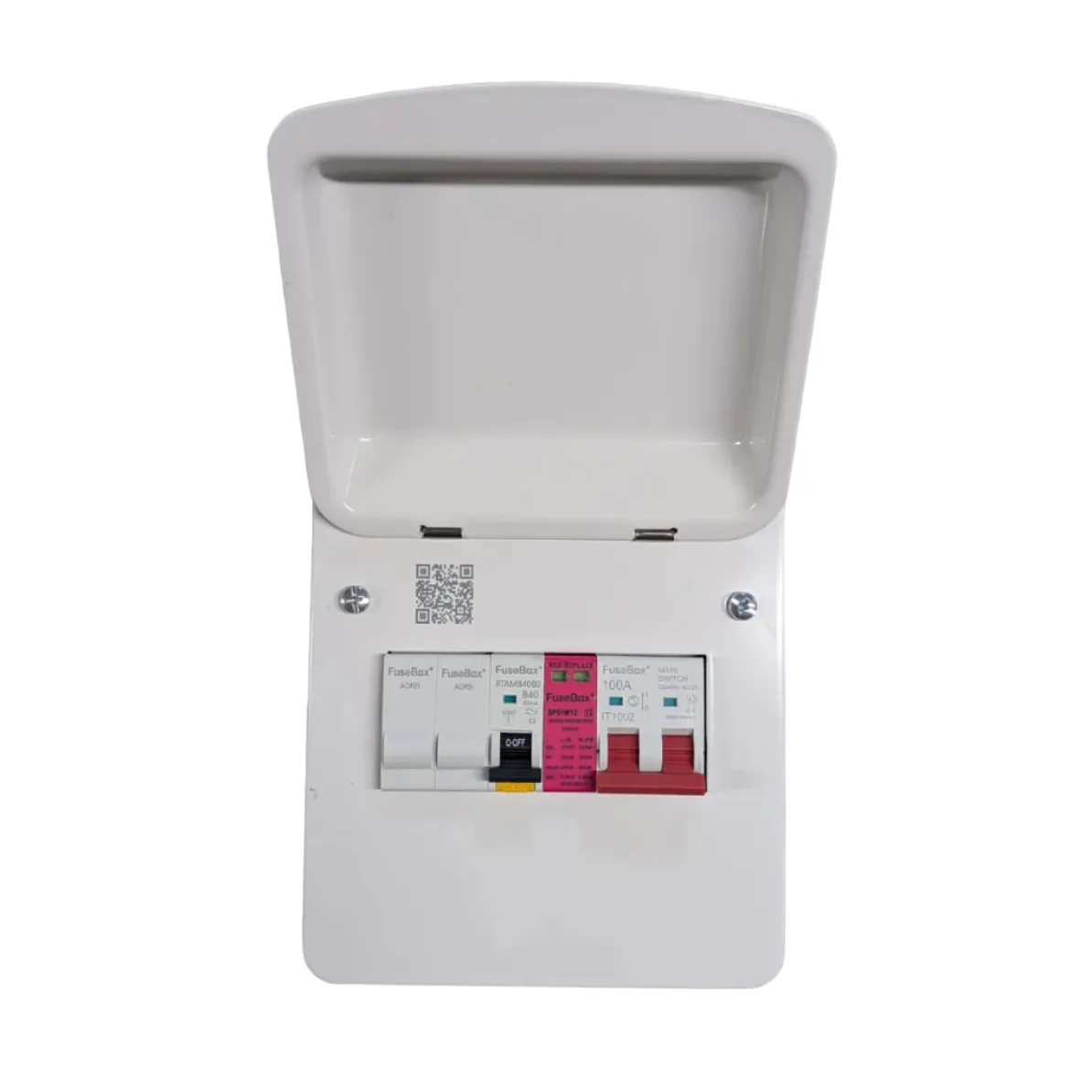

FuseBox EV40ABDZ6P EV Charger Supply Unit 40A Bi-directional RCBO and T2 SPD and 2 Additional Usable Ways

EV Charger Supply Unit 40A Bi-directional RCBO and T2 SPD and 2 Additional Usable Ways

FuseBox EV40ABDZ6P

• 100A main switch incomer
• 40A Type A Double Pole RCBO Bi Directional
• SPD1MT2 - T2 Surge Protection Device (SPD)
• Removable DIN rail
• 2 additional usable ways
• Easy to remove round knock-outs on Top and Bottom
• Captive screws on the front cover
• Stylish white powder coated finish. RAL 9001

The FuseBox EV40ABDZ6P is a comprehensive EV charger supply unit engineered for safe, reliable electric vehicle charging installations. This professional-grade unit combines essential safety features with practical functionality in a compact, wall-mounted design. At its core, the unit features a 100A main switch incomer for robust power management, paired with a 40A Type A Double Pole RCBO with bi-directional capability—essential for modern EV charging systems. Integrated T2 Surge Protection Device (SPD) safeguards connected equipment against voltage spikes, whilst the 30mA RCD Type A tripping sensitivity provides critical fault protection. The unit accommodates future expansion with 2 additional usable ways on a removable DIN rail, allowing flexibility for additional circuits or devices. Measuring 259mm × 162mm × 113mm, it fits neatly into standard installation spaces. Practical design touches include easy-to-remove round knock-outs on top and bottom for cable entry, captive screws on the front cover for secure assembly, and a professional white powder-coated finish (RAL 9001). Ideal for domestic and light commercial EV charging applications, this supply unit meets current electrical safety standards and simplifies installation for qualified electricians.

.

Brand	FuseBox
Category	Metal EV Charger Board
Current Rating	100A
Dimensions	259mm(w) x 162mm(h) x 113mm(d)
Short Circuit Rating	40A - Bidirectional
Tripping Characteristics	B Curve
RCD Type	A
Tripping Sensitivity	30mA
Incoming Device	100A Isolator
Number of Modules	6
Number of Outgoing Ways	3
Surge Protection Fitted	Yes
