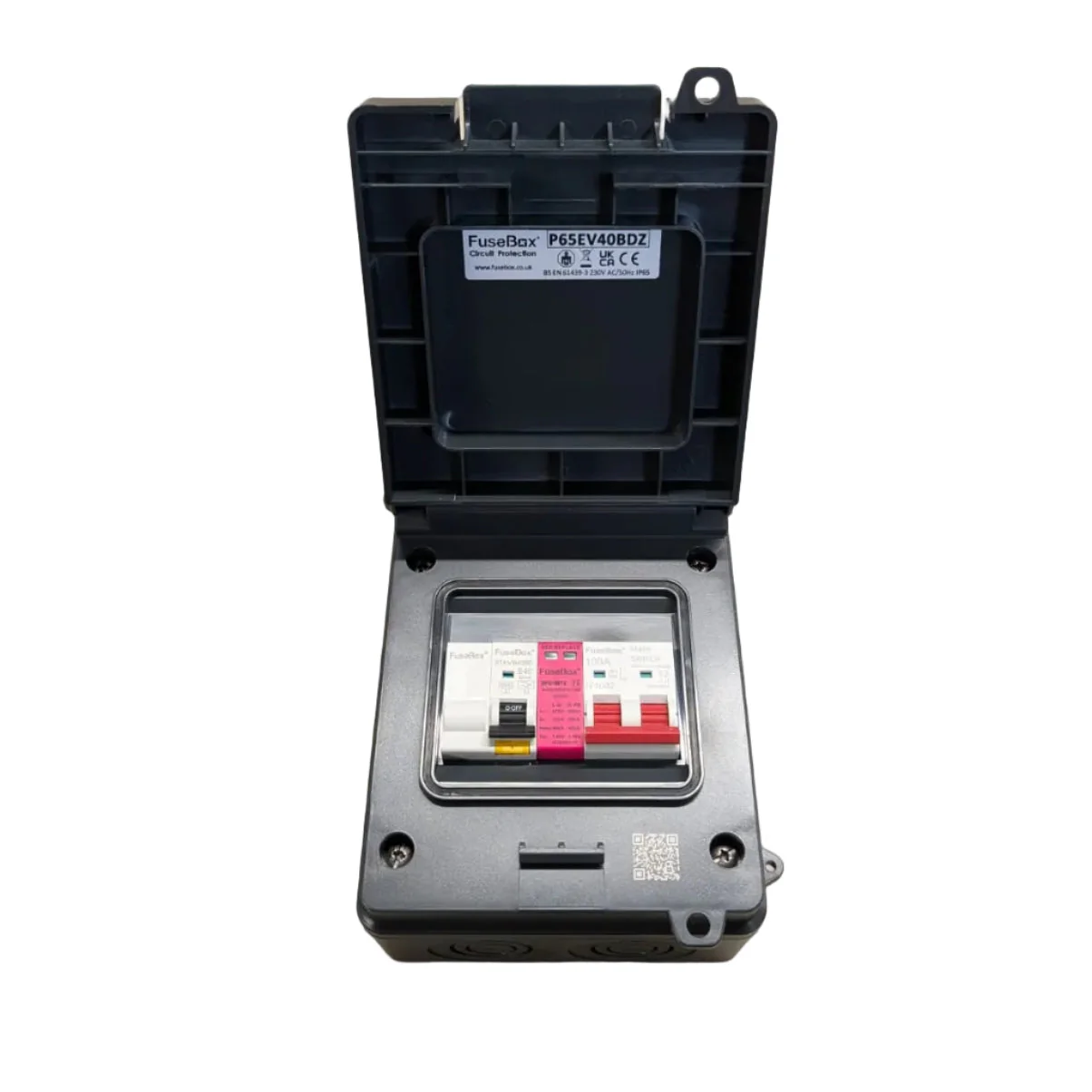

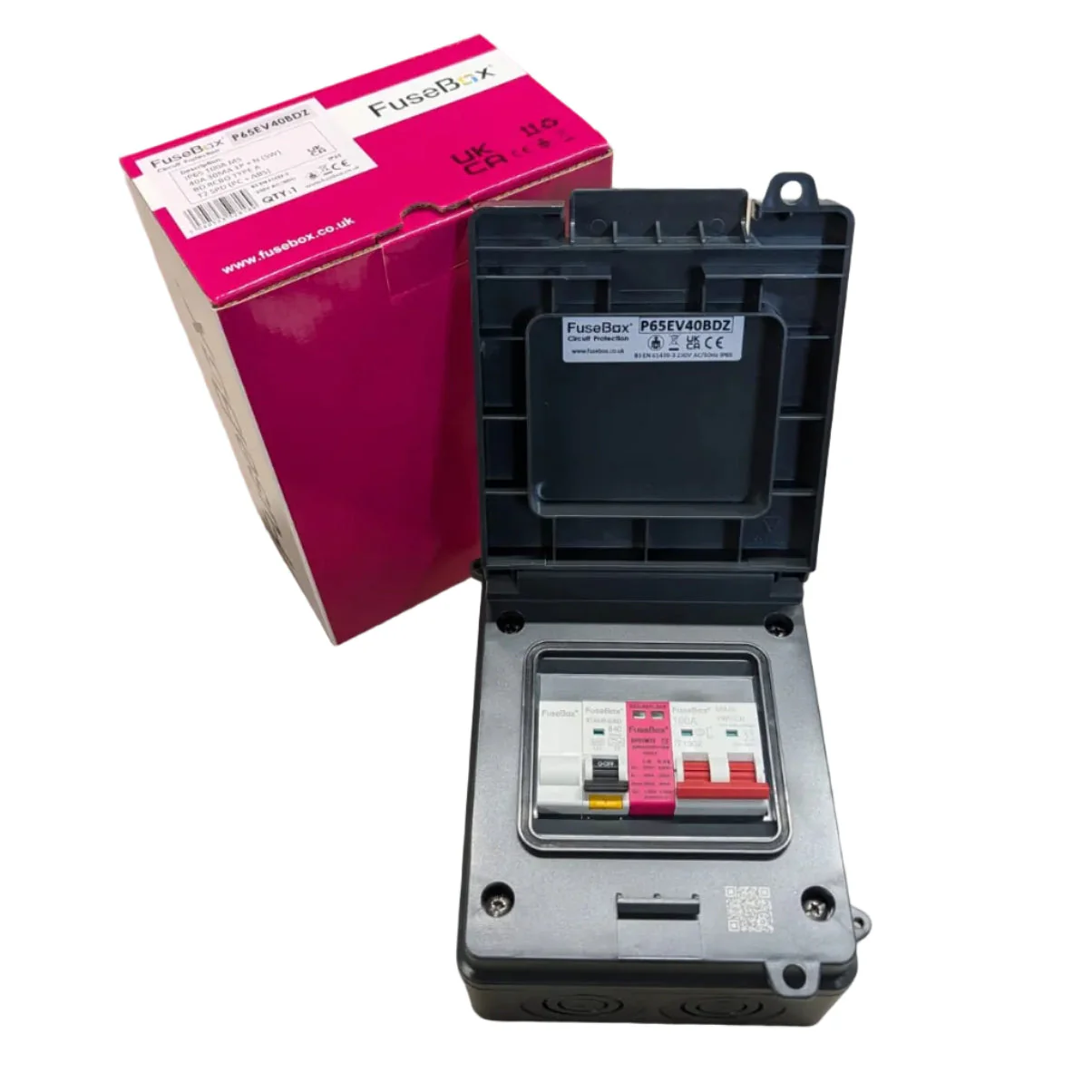

FuseBox P65EV32BDZ IP65 ABS EV Charger Supply Unit with 100A Main Switch, 32A Bi-Directional RCBO and T2 SPD

IP65 ABS EV Charger Supply Unit with 100A Main Switch, 32A Bi-Directional RCBO and T2 SPD

FuseBox P65EV32BD

• 100A Main Switch
• 32A 30mA 1P+N Bi-Directional RCBO
• Type 2 Direct to Busbar SPD
• IP65 and IK07 Rated
• 20mm Drill-outs on top, bottom, sides, and rear - expandable to 32mm

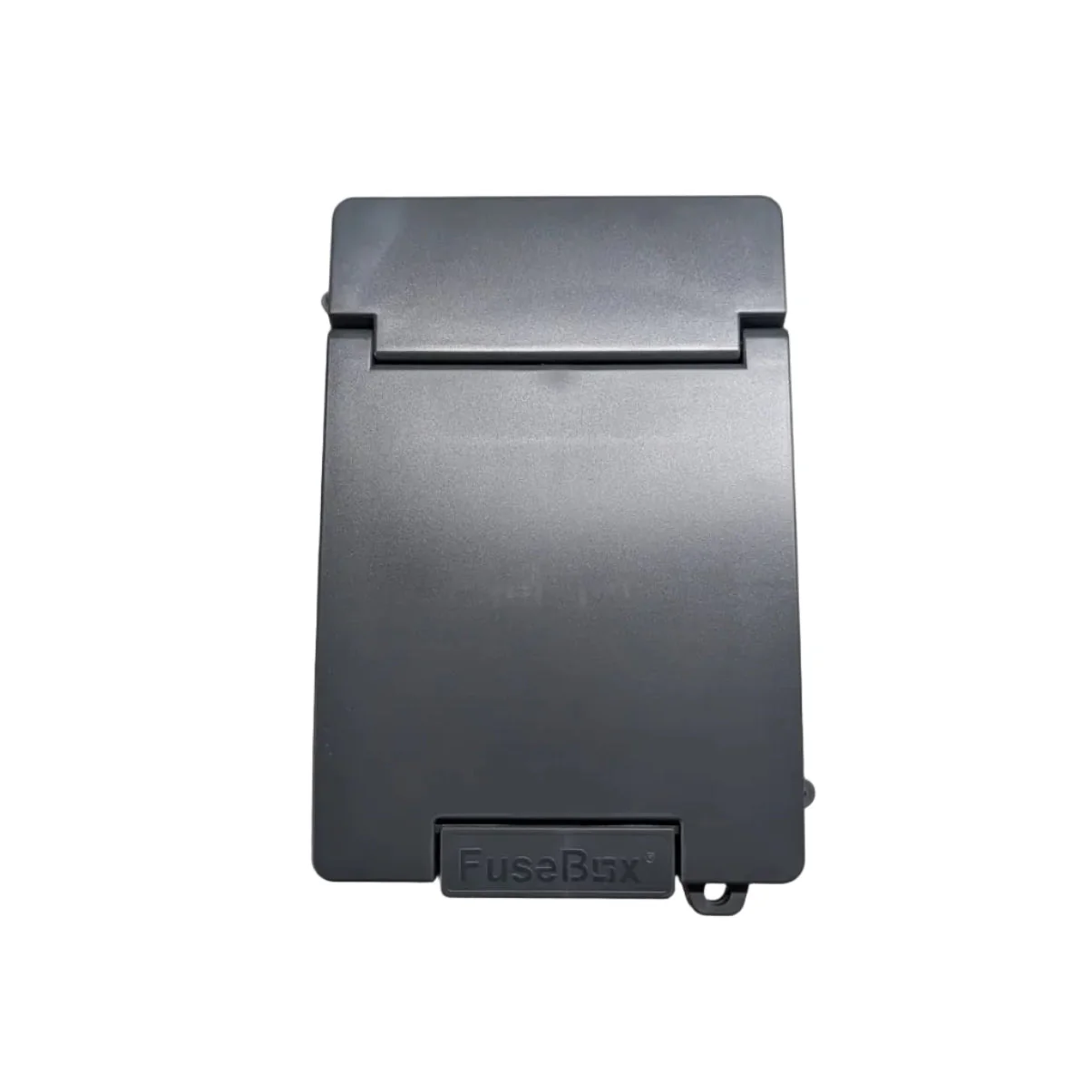

• Pad-lockable Front Cover
• Shrouded Earth & Neutral Terminals
• ABS Plastic Construction


The FuseBox P65EV32BDZ is a robust IP65-rated EV charger supply unit engineered for reliable electric vehicle charging installations. Built with durable ABS plastic construction, this unit combines essential safety and control features in a compact, weather-resistant enclosure. Key specifications include a 100A main switch for circuit isolation, a 32A 30mA bi-directional RCBO for fault protection, and a Type 2 surge protection device (SPD) connected directly to the busbar. The bi-directional RCBO enables vehicle-to-grid (V2G) functionality, allowing power to flow in both directions when required. Rated to IP65 and IK07 standards, this unit withstands dust, water ingress, and impact damage, making it suitable for outdoor and demanding environments. The pad-lockable front cover provides security, while shrouded earth and neutral terminals ensure safe connections. Flexible installation is supported by 20mm drill-outs on all sides, expandable to 32mm for cable entry customisation. Ideal for domestic and commercial EV charging applications, the P65EV32BDZ delivers the protection and functionality needed for modern electric vehicle infrastructure.

.



Brand	FuseBox
Category	Plastic EV Charger Board
Current Rating	100A
Short Circuit Rating	32A
SPD Type	Type 2
Tripping Characteristics	B Curve
Tripping Sensitivity	30mA
Incoming Device	100A Main Switch
Dimensions	223mm x 165mm x 100mm
