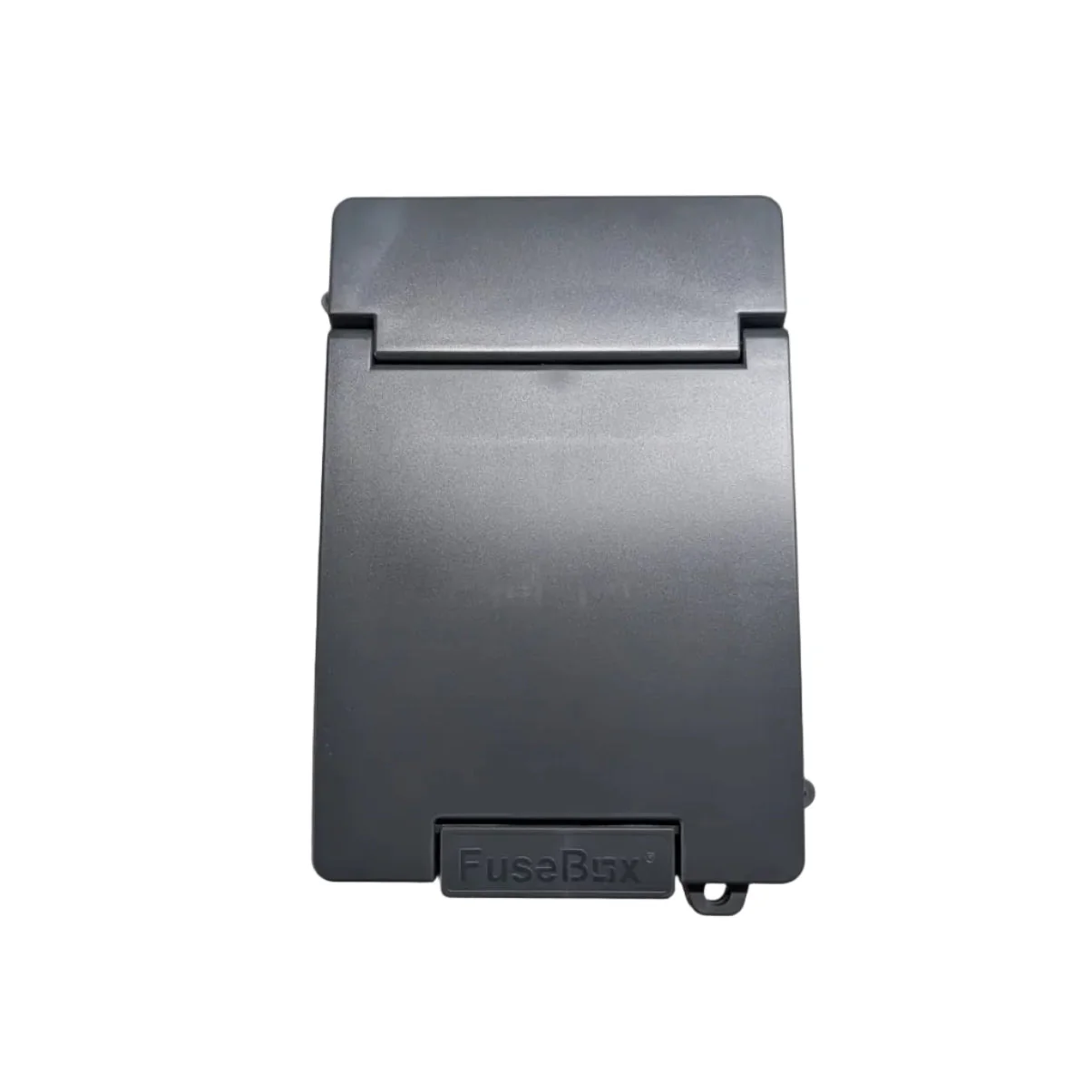

FuseBox P65EV40BD IP65 ABS EV Charger Supply Unit with 100A Main Switch and 40A Bi-Directional RCBO

IP65 ABS EV Charger Supply Unit with 100A Main Switch and 40A Bi-Directional RCBO

FuseBox P65EV40BD

• 100A Main Switch
• 40A 30mA 1P+N Bi-Directional RCBO
• IP65 and IK07 Rated
• 20mm Drill-outs on top, bottom, sides, and rear - expandable to 32mm
• Pad-lockable Front Cover
• Shrouded Earth & Neutral Terminals
• ABS Plastic Construction


The FuseBox P65EV40BD is a robust IP65-rated EV charger supply unit engineered for reliable electric vehicle charging installations. Featuring a 100A main switch and 40A bi-directional RCBO with 30mA residual current protection, this unit delivers comprehensive safety and control for modern EV infrastructure. Built from durable ABS plastic construction, the P65EV40BD combines weather resistance (IP65) with impact protection (IK07 rating), making it suitable for both indoor and outdoor environments. The pad-lockable front cover provides security, while shrouded earth and neutral terminals ensure safe operation. Flexible installation is enabled by 20mm drill-outs on all sides (expandable to 32mm), allowing seamless integration into various mounting configurations. The bi-directional RCBO capability supports vehicle-to-grid (V2G) applications, future-proofing your charging infrastructure. Compact dimensions of 223mm x 165mm x 100mm make this unit space-efficient without compromising functionality. Ideal for domestic and commercial EV charging installations, the P65EV40BD meets current British electrical standards and provides the protection and performance required for safe, compliant charging solutions.

.



Brand	FuseBox
Category	Plastic EV Charger Board
Current Rating	100A
Short Circuit Rating	40A
Tripping Characteristics	B Curve
Tripping Sensitivity	30mA
Incoming Device	100A Main Switch
Dimensions	223mm x 165mm x 100mm
