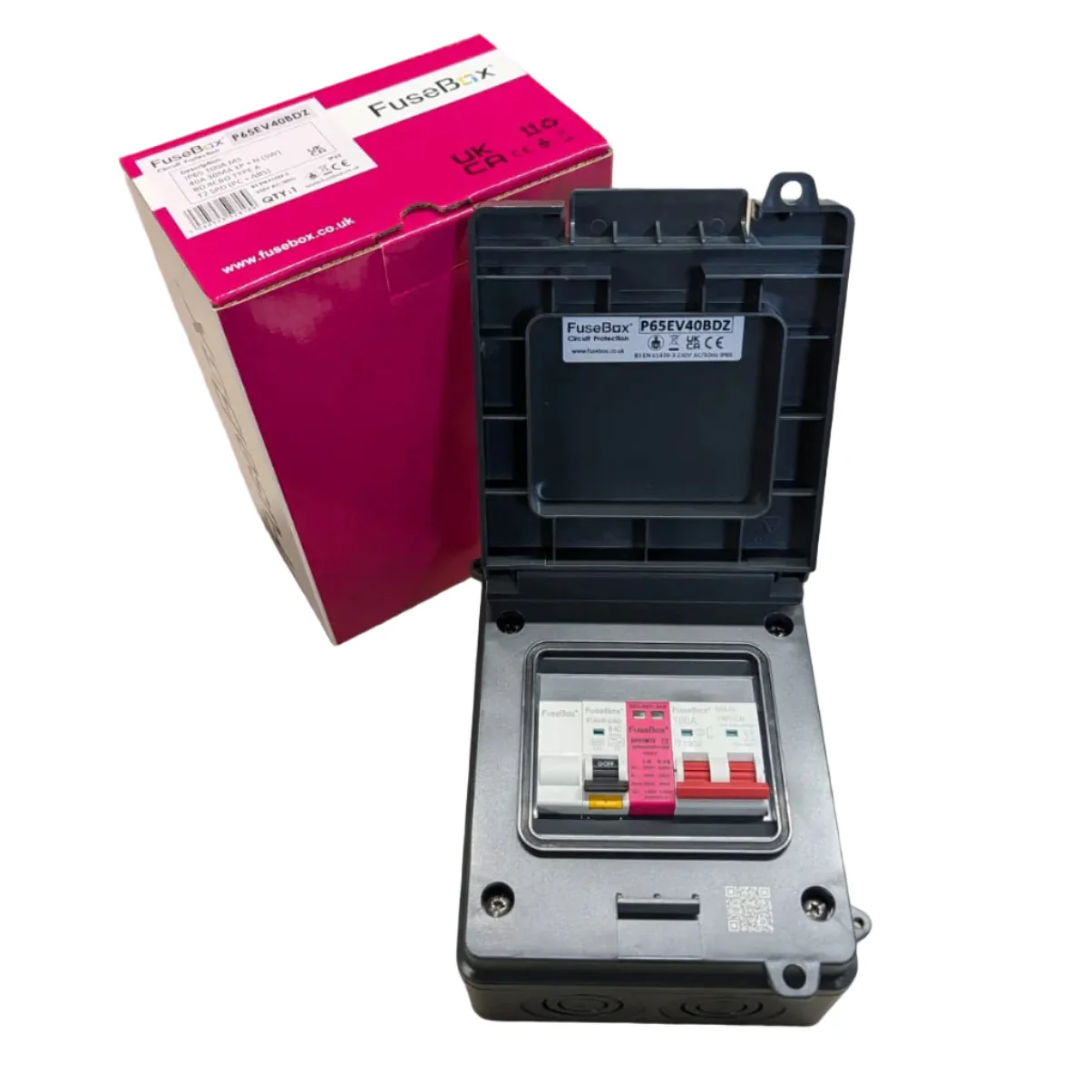

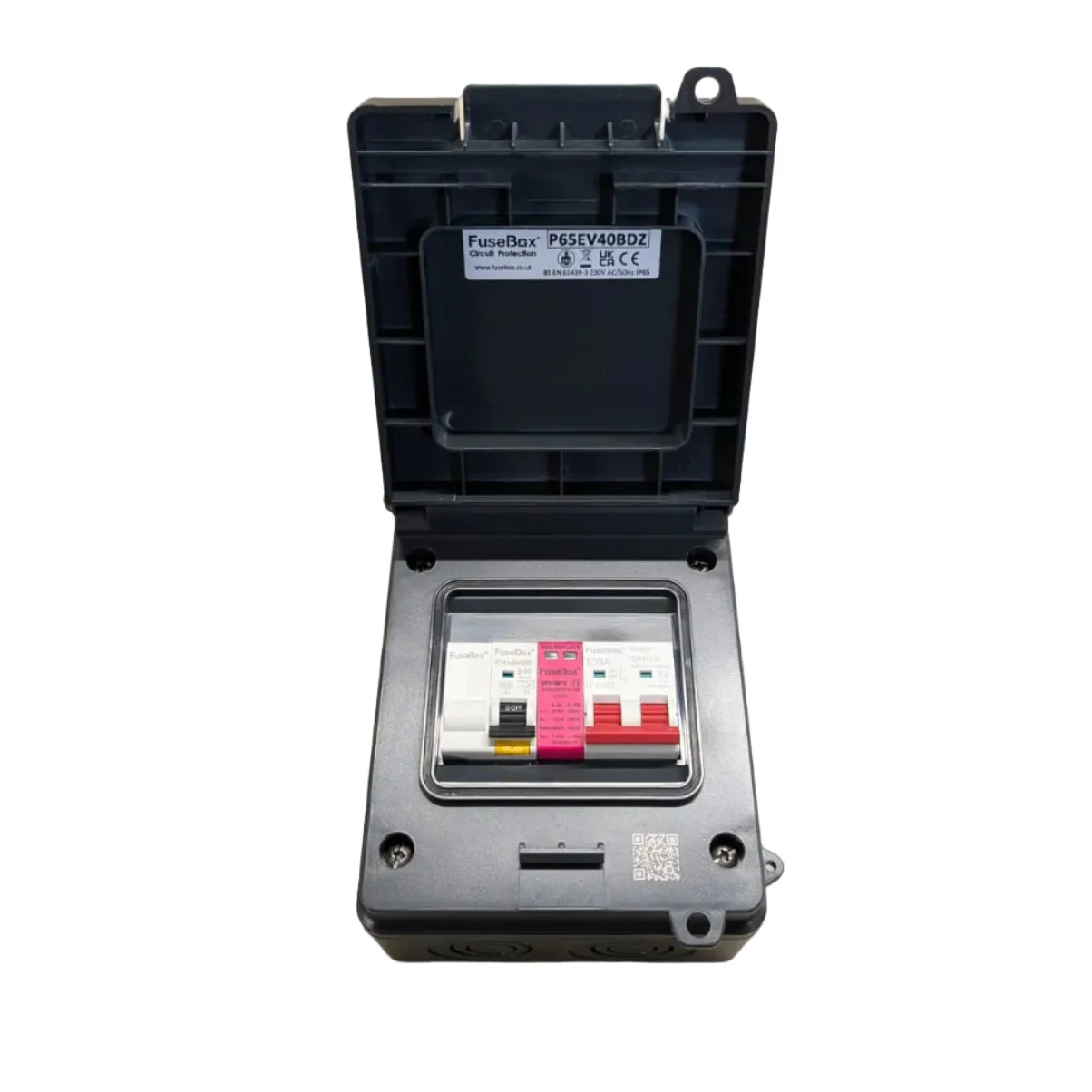

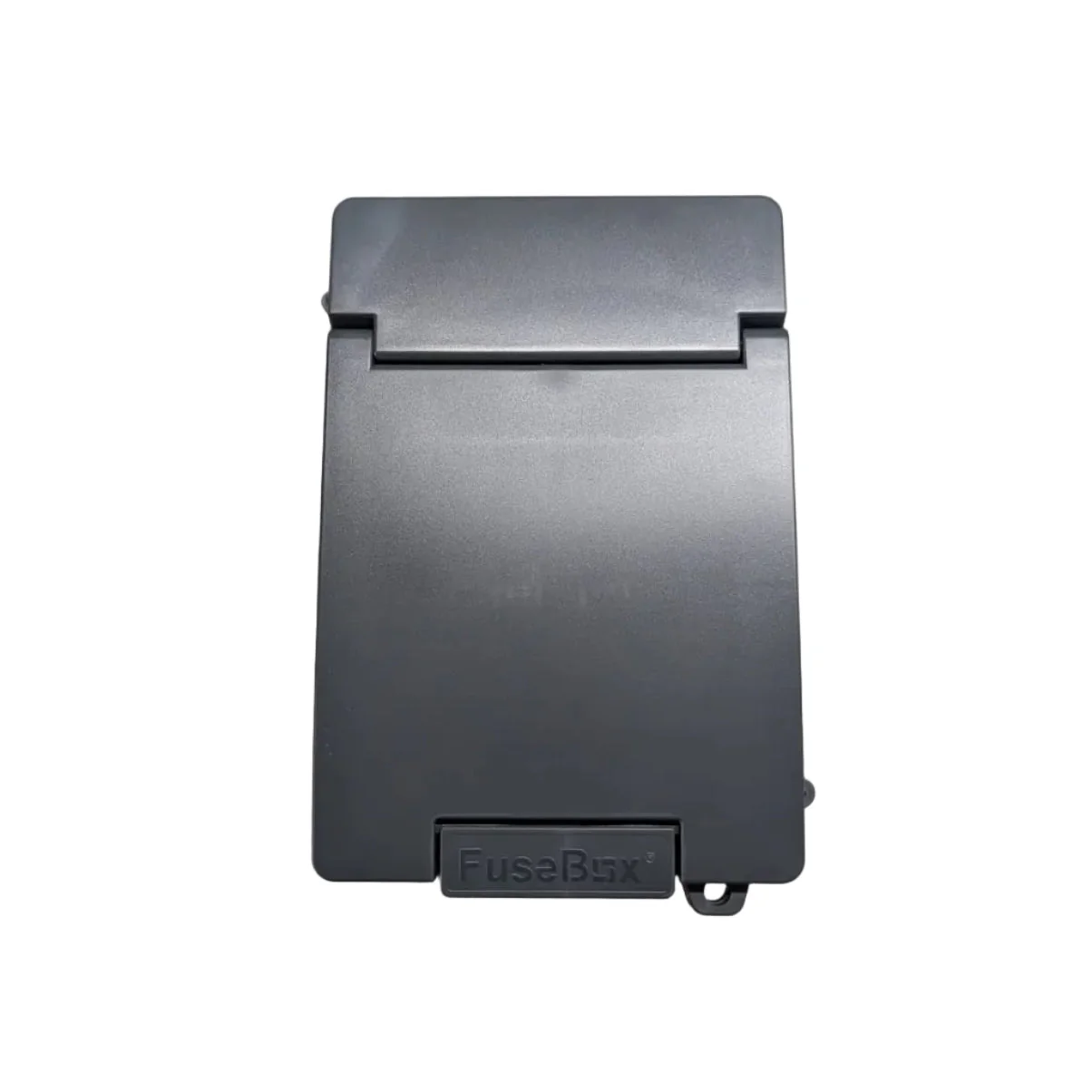

FuseBox P65EV40BDZ IP65 ABS EV Charger Supply Unit with 100A Main Switch, 40A Bi-Directional RCBO and T2 SPD

IP65 ABS EV Charger Supply Unit with 100A Main Switch, 40A Bi-Directional RCBO and T2 SPD

FuseBox P65EV40BD

• 100A Main Switch
• 40A 30mA 1P+N Bi-Directional RCBO
• Type 2 Direct to Busbar SPD
• IP65 and IK07 Rated
• 20mm Drill-outs on top, bottom, sides, and rear - expandable to 32mm
• Pad-lockable Front Cover
• Shrouded Earth & Neutral Terminals
• ABS Plastic Construction


The FuseBox P65EV40BDZ is a robust IP65-rated EV charger supply unit engineered for reliable electric vehicle charging installations. Built with durable ABS plastic construction, this unit combines essential safety and control features in a compact, weather-resistant enclosure. Key specifications include a 100A main switch for circuit isolation, a 40A bi-directional RCBO with 30mA residual current protection, and a Type 2 surge protection device connected directly to the busbar. The IP65 and IK07 ratings ensure protection against dust and water ingress, making it suitable for both indoor and outdoor environments. The unit features flexible installation options with 20mm drill-outs on all sides (expandable to 32mm), shrouded earth and neutral terminals for enhanced safety, and a pad-lockable front cover for security. Measuring 223mm x 165mm x 100mm, it delivers professional-grade protection and control for EV charging applications while maintaining compliance with modern electrical safety standards.

.



Brand	FuseBox
Category	Plastic EV Charger Board
Current Rating	100A
Short Circuit Rating	40A
SPD Type	Type 2
Tripping Characteristics	B Curve
Tripping Sensitivity	30mA
Incoming Device	100A Main Switch
Dimensions	223mm x 165mm x 100mm
