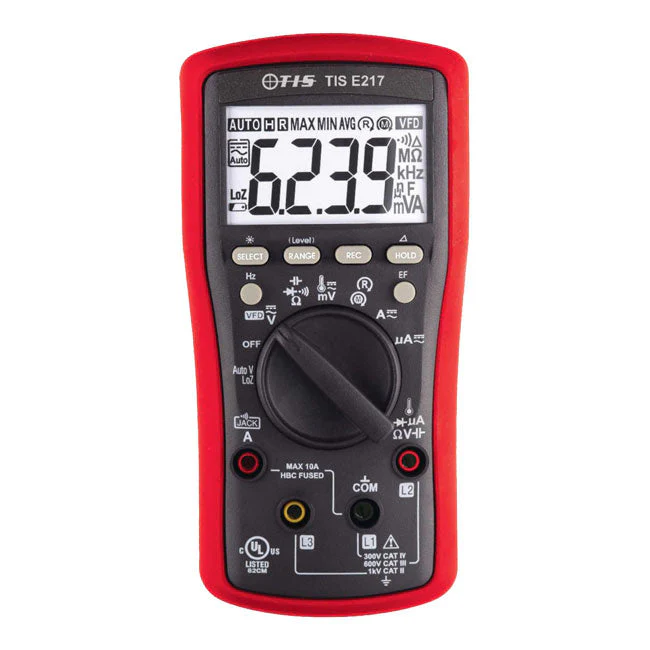

TIS TISE217 TRMS Digital Multimeter

TRMS Digital Multimeter

TIS TISE217

• 3 - 5/6 Digits, 6000 Counts, Large easy to read LCD Display
• Fast Measurements, 5/Sec; Fully Auto-Ranging
• True RMS AC Conversion & Intelligent Auto Power Off
• Data Hold, Diode Tester & Relative Zero Mode
• Records Max/Min Readings & Calculates Average Readings over time
• VFD V & Hz Fundamental Readings of most Variable-Frequency-Drives
• Paper white Back-Lit LCD Display
• BeepLitTM Continuity. Features Audible Beep & Visible Backlight Effects
• Non-Contact EF-Detection (NCV) with Hi/Lo Selectable Sensitivities
• Probe-Contact EF-Detection for more precise indication of Live
• 3φ-Rotation-R (Regular-sensitivity mode) for Supply Systems (Probe-contact)
• 3φ-Rotation-M (Hi-sensitivity mode) for Motors (Probe-contact)
• AutoV LoZ Feature. Automatic DC & AC 1000V Selection with Low Initial Impedance to Drain Ghost Voltages
• DC/AC V Ranges: 600.0mV to 1000V
• Ohms Ranges: 600.0Ω to 60.00MΩ
• Cx Ranges 2000nF to 10.00mF for Start & Run Motor Capacitors
• Line Level Frequency Ranges 99.99Hz to 50.00kHz
• DC/AC A Ranges 6.000A to 10.00A (20A for 30s / 5 mins cool down)
• DC/AC μA Ranges 200.0μA to 2000μA
• Type-K Temperature Readings -400C to 4000C or -400F to 7520F
• Beep-JackTM Input Warning against improper A-Terminal Plug In
• Rugged Fire Retarded Housing
• Replaceable Protective Holster with Probe-Holders & Tilt-Stand
• Batteries and Fuses Access Door with Optional Magnetic Hanger
• Transient Protection up to 6kV 1.2/50μs Lightning Surge
• LVD: EN61010-1/-2-030/-2-033, CAT-II 1kV, CAT-III 600V & CAT-IV 300V
• EMC: EN61326-1: 2013

The TIS TISE217 TRMS Digital Multimeter is perfect for electrical professionals. With its 3-5/6 digit 6000 count display and fast measurements of up to 5/sec, the large and easy-to-read LCD display allows for accurate and reliable readings. It also includes VFD V & Hz Fundamental Readings of most Variable-Frequency-Drives and a Paper white Back-Lit LCD Display. Plus, BeepLitTM Continuity feature adds audible beep and visible backlight effects for accurate measurements. The Prote-Contact EF-Detection is perfect for more precise live indication, and the AutoV LoZ Feature offers automatic DC & AC 1000V.



.

Brand	Test Instrument Solutions
Ac Current Measurement	10A
Ac Voltage Measurement	1000V AC
Auto Power Down	Yes
Auto Ranging	Yes
Battery Level Indicator	Yes
Battery Size	AA
Capacitance Measurement	10
Compliance	CE
Continuity Check	Yes
Data Hold	Yes
Dc Current Measurement	10A DC
Dc Voltage Measurement	1000V DC
Dimensions	161mm(h) x 80mm(w) x 50mm(d)
Display County	6000
Display Type	Digital
Frequency Measurement	50.00 kHz
Fused	Yes
Guarantee	5 Years
Resistance Measurement	60 MΩ
Standards	EN 61010, EN 61326
Temperature Range	-400 -4000°C
